Introduction

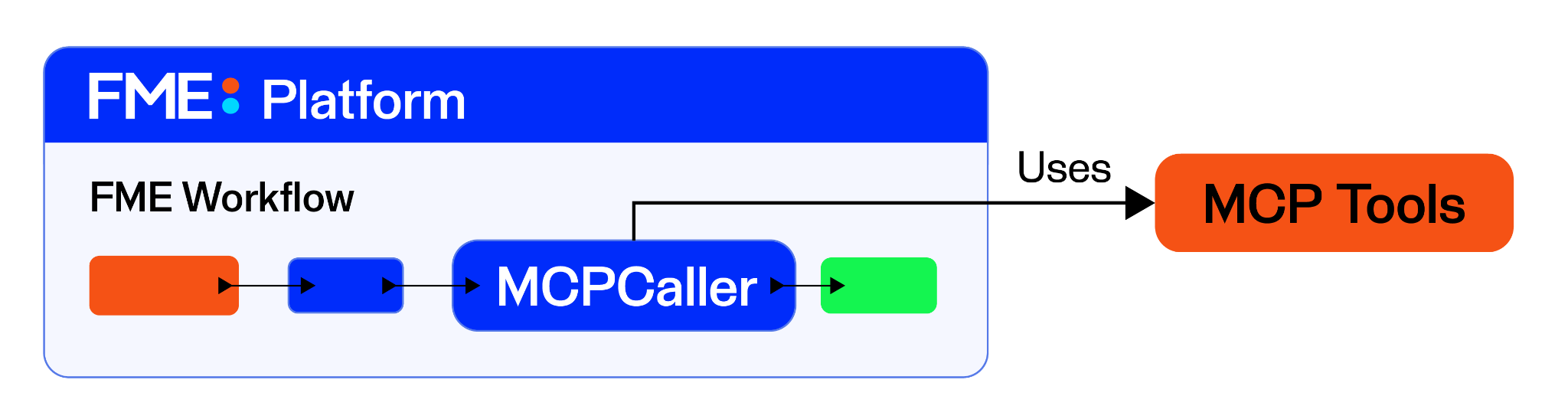

The MCPCaller lets an FME workspace call tools hosted by external MCP servers.
This means a workspace can connect to systems that expose an MCP interface without needing a dedicated FME connector for each system. The workspace calls the external tool, provides the required inputs, and receives the result as part of the workspace run.
As more platforms adopt MCP, those systems become reachable from FME through the same transformer. A workflow can use MCPCaller to pull data from another system, trigger an action, run a validation, or invoke processing that happens outside FME.
The returned result can then be used directly in the workspace logic, just like output from any other transformer or reader.
Why Use the MCPCaller?
Call external tools without building a custom connector
Any system that exposes an MCP interface becomes accessible from within an FME workflow through the MCPCaller, without writing a custom integration for each one.
Enrich workflows with data from connected systems
The MCPCaller can fetch data from an external MCP server mid-workflow, combining the results with data already in the workspace before writing to a destination.
Trigger actions in external systems during a translation
The MCPCaller can invoke write operations on external systems as features are processed, updating records or triggering processes without a separate integration.
Select tools dynamically based on incoming data

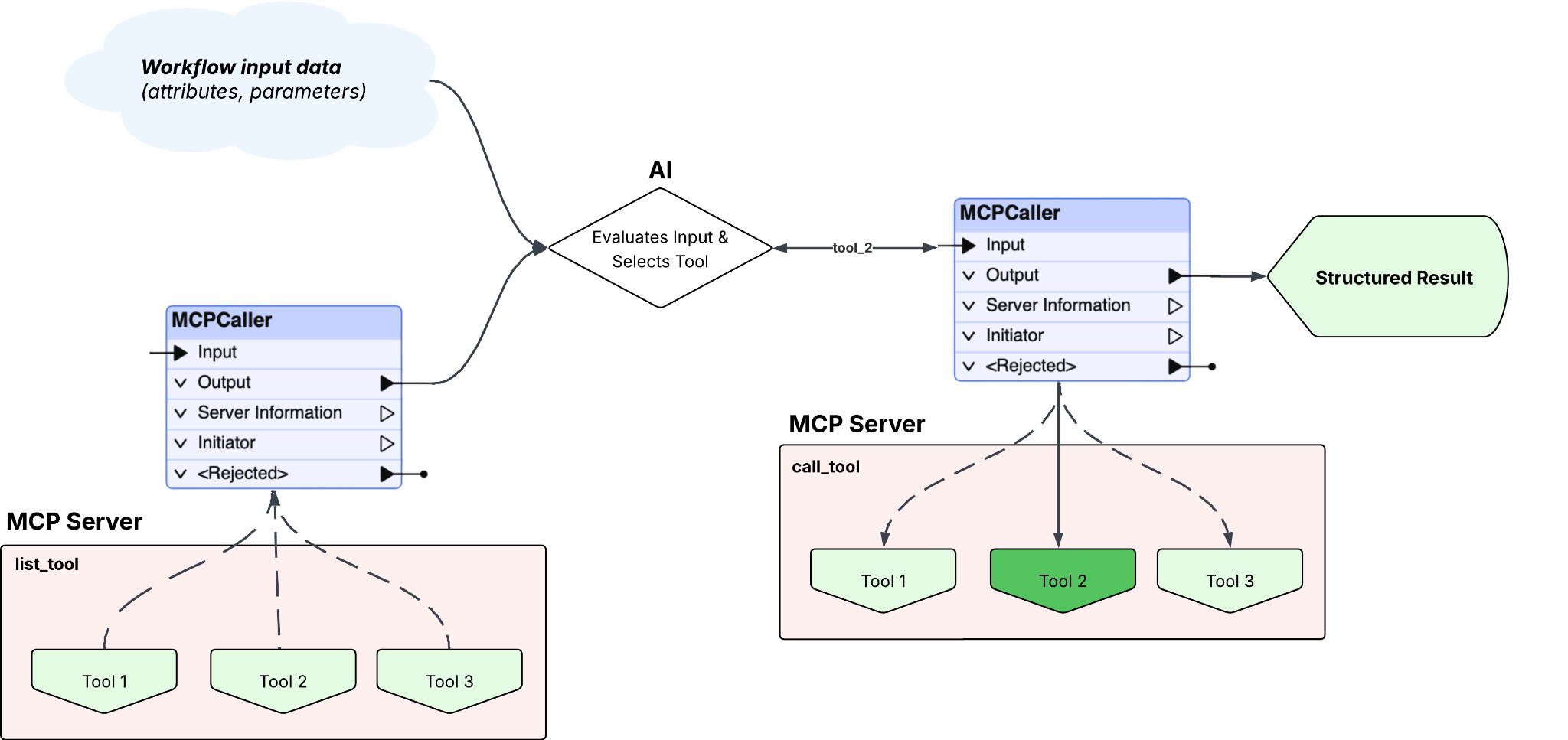

A workspace can discover available tools on an MCP server at run time and invoke the appropriate one based on the data being processed, without hardcoding a specific tool call.
Chain multiple MCP tool calls in a single workflow
Multiple MCPCallers can be used in sequence, passing outputs from one tool call as inputs to the next, orchestrating operations across different MCP-enabled systems within a single workspace.
Access MCP-exposed resources and prompts
Beyond tools, the MCPCaller can read resources and use prompts from external MCP servers, making files, records, documents, and reusable templates available within a workflow.
Key Concepts
Two Ways to Use the MCPCaller
The MCPCaller can be used in two ways, depending on whether the tool to call is known at design time or determined at run time.
Calling a specific tool directly
The MCPCaller is configured to call a designated tool on the MCP server. Workflow input data is passed as inputs, and the result is returned as structured output.

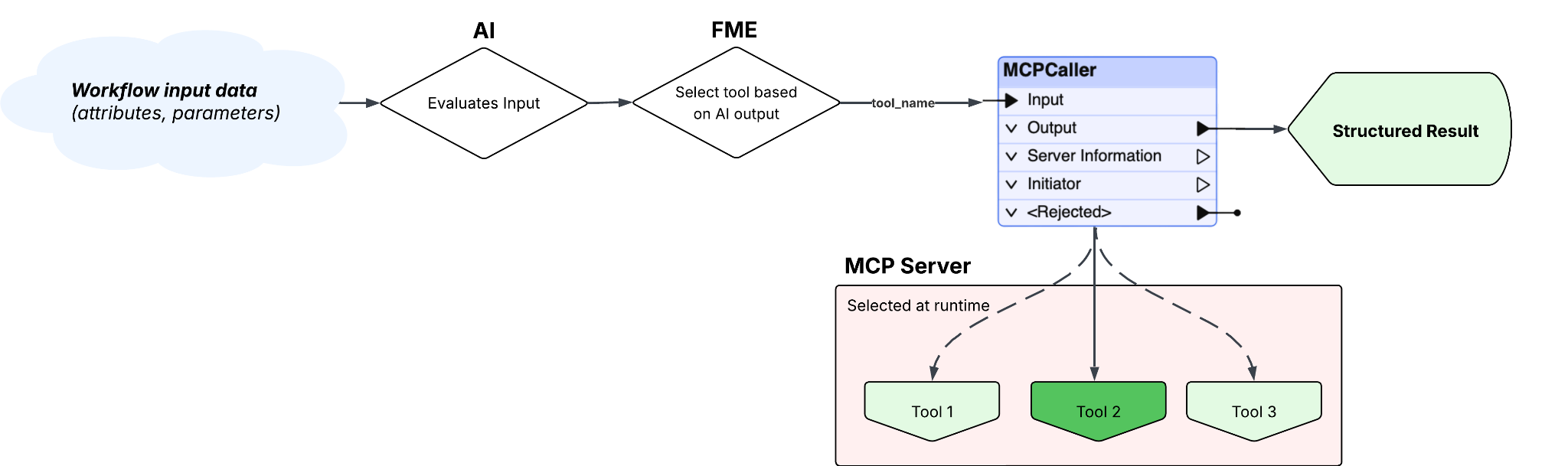

Selecting a tool based on input
An AI component evaluates the incoming data and selects the appropriate tool before passing the call to the MCPCaller. This allows a single workspace to route to different tools without hardcoding the choice.
Connecting to an MCP Server
The MCPCaller requires the URL of an MCP server and any required authentication credentials, configured in the transformer parameters. Tools, Resources, and Prompts are all supported.
- The tool, resource, or prompt to invoke can be set as a fixed value or driven by a feature attribute.
- When a tool call fails, the MCPCaller routes features to a fallback output port. This can be configured to handle errors without failing the workspace.
For full configuration details, see the MCPCaller documentation.
