As of FME 2024.0, support for Esri ArcGIS Online (AGOL), ArcGIS Enterprise Portal, and ArcGIS Server Feature Service formats has transitioned to a unified approach using the new Esri ArcGIS Feature Service (Format). This format replaces the legacy reader/writer formats for each of the three services.
Starting in FME 2026.1, the legacy formats will be hidden in the Quick Add menu. Instead, equivalent functionality is now provided by the downloadable Esri ArcGIS Connector package, available on FME Hub. The package also includes new web services and key transformers such as the ArcGISOnlineConnector, ArcGISAttachmentConnector, and ArcGISBranchVersionManager. The package can be installed directly through the Quick Add menu in FME Workbench. Once installed, the new Esri Feature Service format will appear in the Gallery as a unified method for interacting with all three types of Esri ArcGIS Feature Services.
For details on this transition, including guidance on updating existing workspaces, please refer to the article: Working with Esri ArcGIS Feature Services in FME.
Introduction
This article explains how to connect to ArcGIS Enterprise Portal using OAuth 2.0 user authentication. It covers creating credentials in ArcGIS Enterprise Portal, applying them to a new FME Web Service definition, and creating an FME Web Connection. With OAuth 2.0 user authentication, a user authorizes the FME Web Connection using their ArcGIS Enterprise credentials so that FME can act on their behalf. Please note that, at this time, app authentication is not supported in ArcGIS Enterprise Portal.
ArcGIS Enterprise Portal supports various authentication methods (see here). Please note:
- OAuth 2.0 user authentication works with the built-in ArcGIS Enterprise Identity Store, SAML, or Portal-tier authentication.
- OAuth 2.0 user authentication does not work with Web-tier authentication, like Integrated Windows Authentication (IWA). For web-tier connection options, please see the FME documentation on Enterprise Authentication.
If you are trying to create an ArcGIS Enterprise Portal Web Connection, please use this article instead: How to Create an ArcGIS Online Web Connection (OAuth 2.0 User Auth)
Step-by-Step Instructions
Part 1: FME Form
1. Create an Application on Enterprise Portal
Let's start by creating OAuth 2.0 Developer Credentials in ArcGIS Enterprise Portal, which are stored in an application object. These credentials will be used in the FME Web Connection. Note: Screenshots in this step are from ArcGIS Enterprise Portal 12.1 and may be slightly different in other Portal versions.

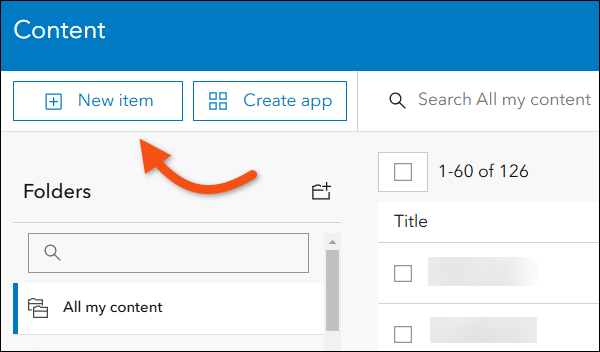

Log in to Portal and go to the Content view. Click on New item.
Choose ‘Developer Credentials'

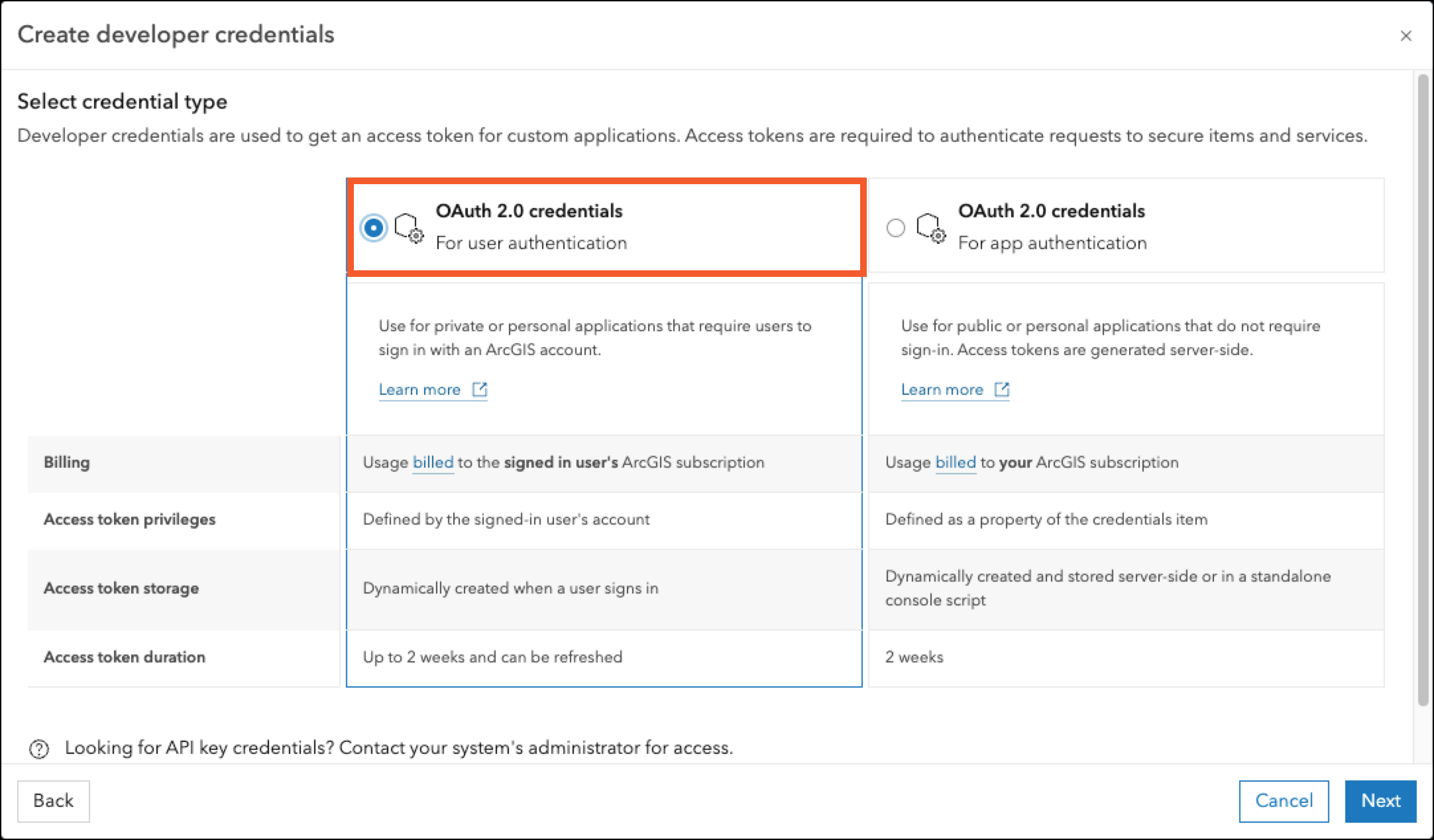

Choose OAuth 2.0 credentials for user Authentication. For older versions of Portal, this page may appear differently and show OAuth 2.0 as the only option. Click Next.

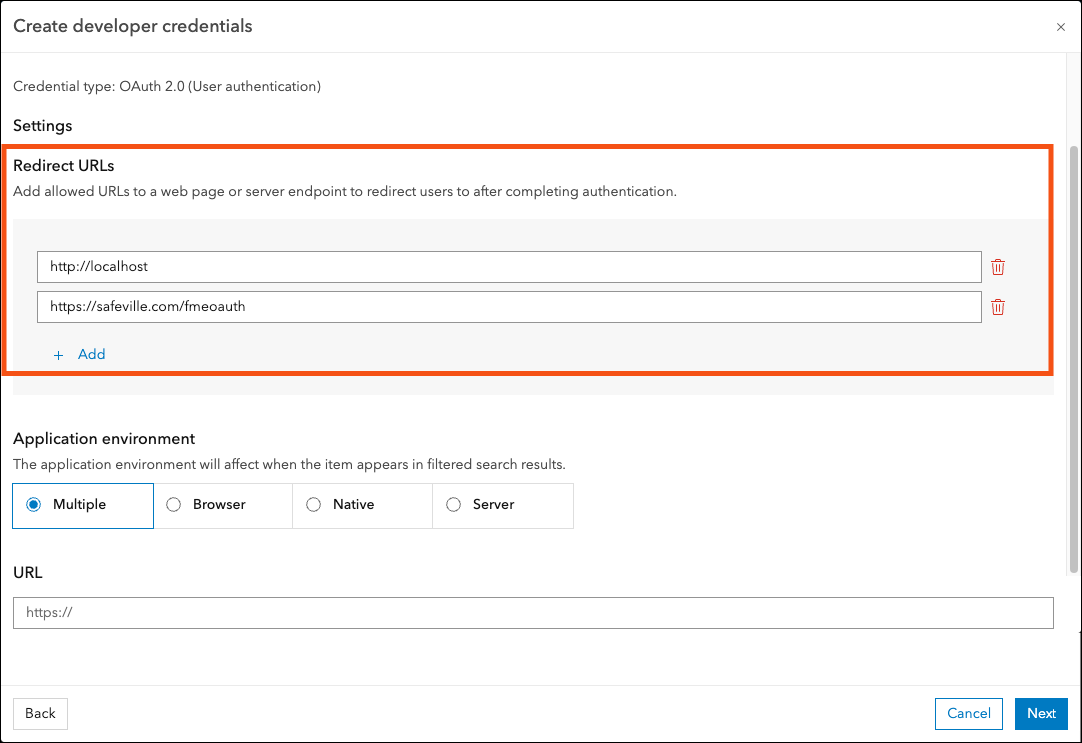

For Redirect URLs, enter http://localhost if you're using personal (default) or shared connection storage in FME Form.
If you have enabled FME Flow Connection Storage in FME Form, then enter your FME Flow instance's redirect URL in the format: https://<yourFMEFlowURL>/fmeoauth.
It's ok to have multiple Redirect URLs for different connection storage options.
Leave Application environment as Multiple. Leave URL blank. Click Next.
In older versions of ArcGIS Enterprise Portal, depending on your Portal role, you may be prompted to assign privileges and items to the application. This does not apply to OAuth 2.0 user authentication - anything chosen here will not be used when FME connects to your Portal. If these steps appear, click Next and Skip.

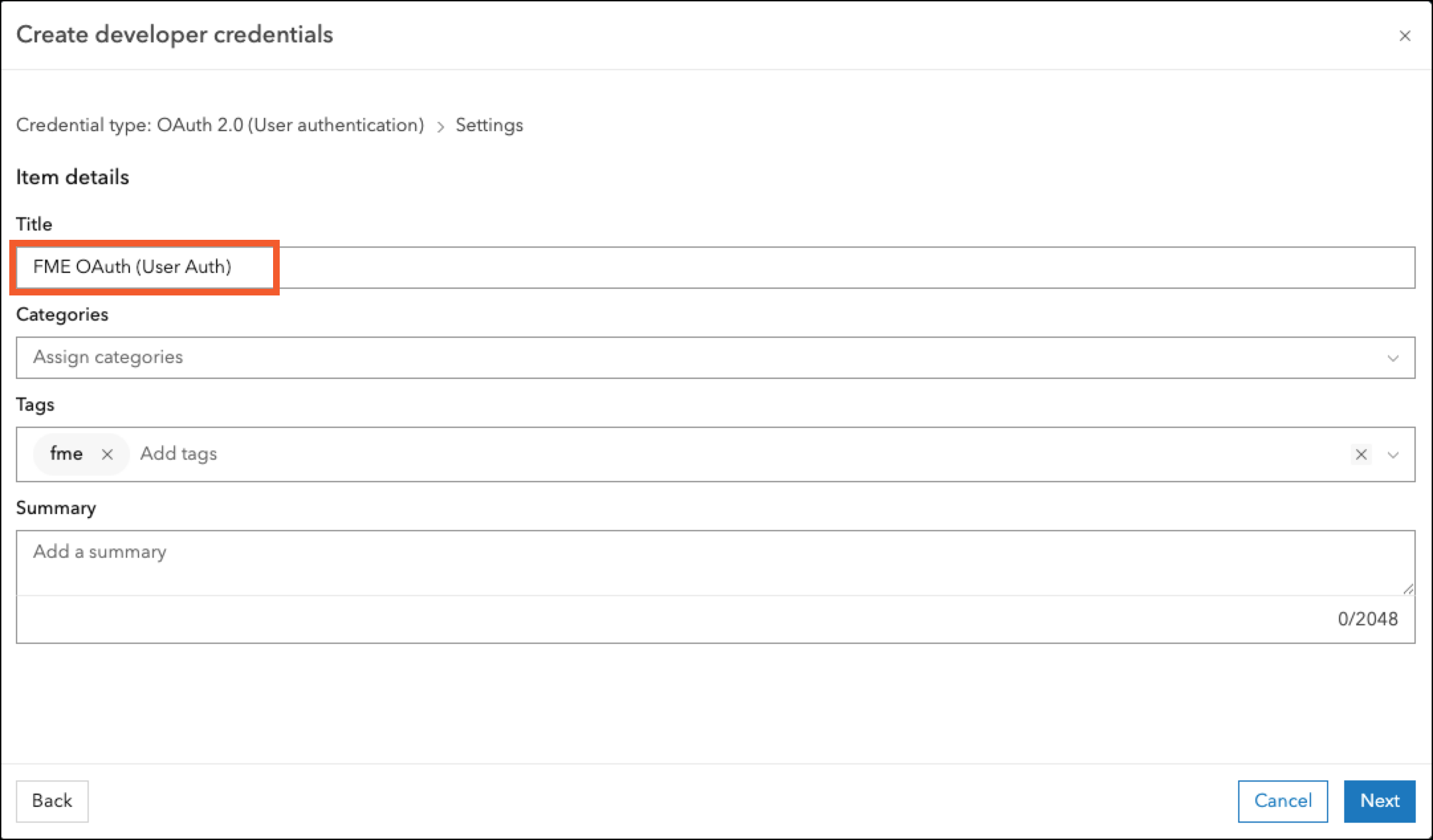

Enter a Title and any other optional information you want. Click Next.

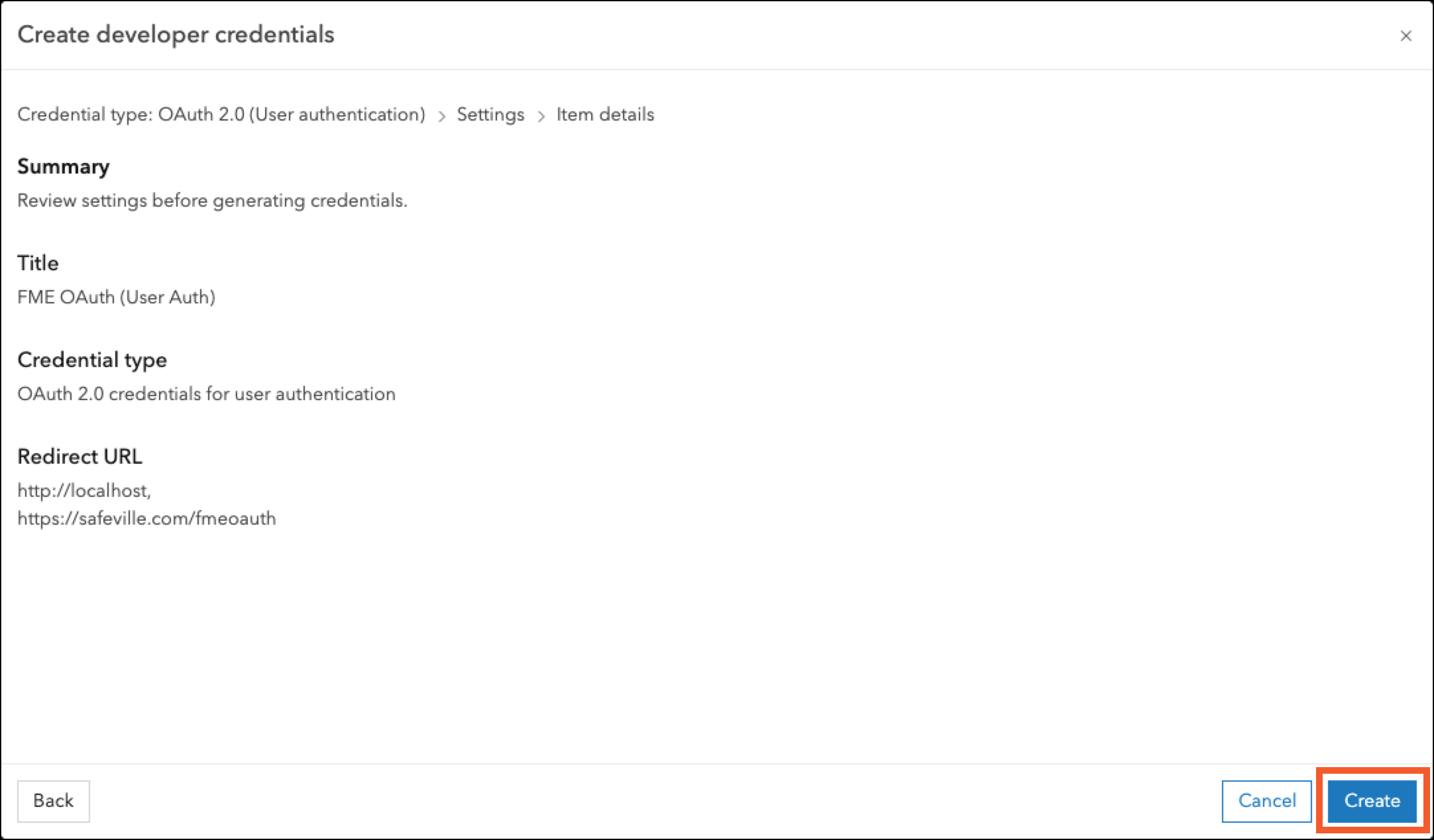

Review the summary and click Create.

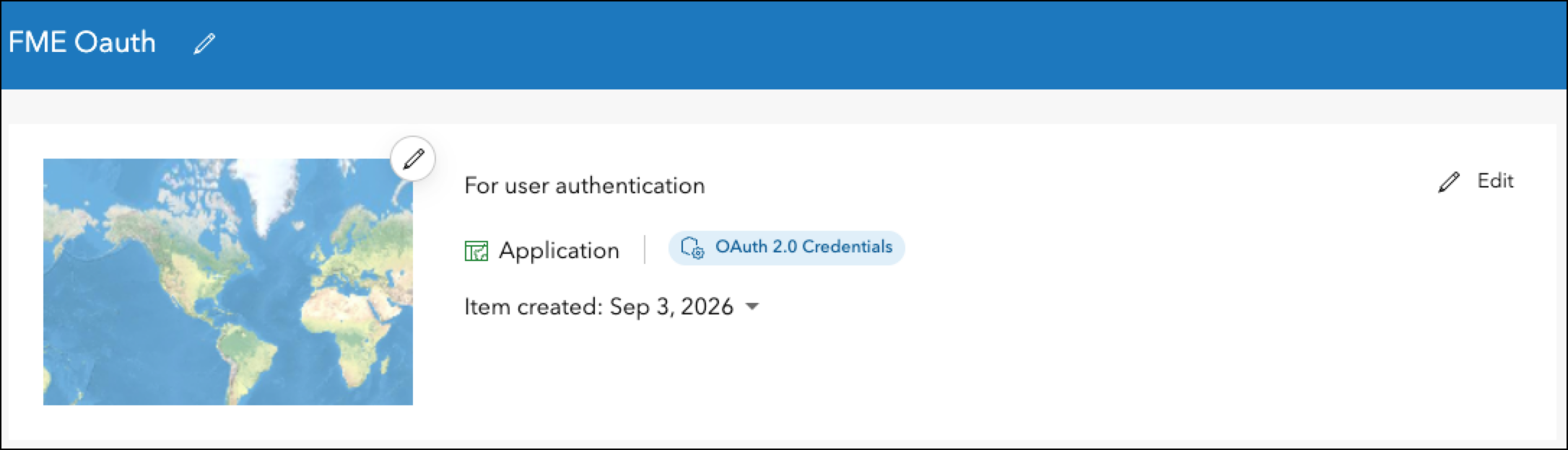

An Application with OAuth 2.0 credentials will be created, and its landing page will open. You can also find it on your contents page if you need to access it in the future.
Click on Settings in the menu.

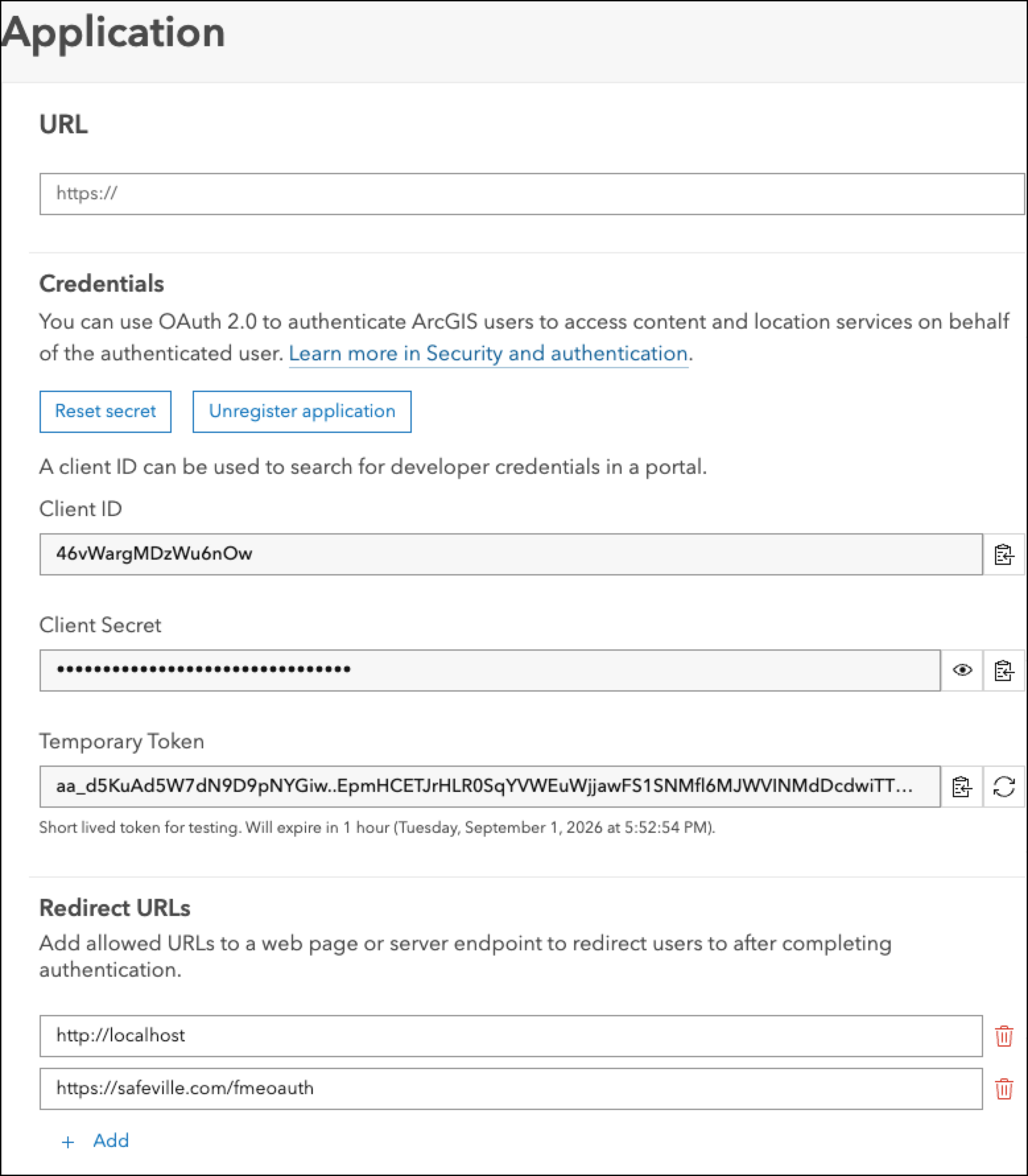

On the Settings page, scroll down to Application. This section has the details you need to configure the FME ArcGIS Online Web Service. Keep this page open, as you will need to copy and paste the credentials into FME.
2. Create a Web Service in FME Form (from Template)
For instructions on how to use the Esri ArcGIS Connection Package for FME 2024.0+ please see the article Working with Esri ArcGIS Feature Services in FME and download the new package from FME Hub
In FME Workbench, open the drop-down Tools/Utilities menu and select FME Options. Navigate to Web Connections, then click Manage Services.
Click on the "+" drop-down menu in the bottom left corner (1) and then Create From (2) > Esri ArcGIS Enterprise OAuth (Template) (safe.esri-agol) (3).
Add the web service information from the ArcGIS Enterprise Portal Application Settings page:
- Web Service Name: Give the Web Service a name. It’s good practice to include the service, “Enterprise Portal”, in the name as well as the app name in ArcGIS Enterprise.
- Client ID: <copy from ArcGIS Enterprise Portal Settings page>
- Client Secret: <copy from ArcGIS Enterprise Portal Application Settings page>
- Redirect Strategy: This setting is only available for FME 2025.2 and later. Choose Loopback Interface Redirect. To learn more about redirect strategies, please read external browser authentication. For versions of FME before 2025.2, the internal FME browser is used.
-
Redirect URI: The Redirect URI must match the one entered in the ArcGIS Online application (created in the first step). Enter
http://localhost, or, if you are using FME Flow Connection Storage, enterhttps://<yourFMEFlowURL>/fmeoauth. - Authorization and Token URLs: replace [PORTAL_HOST] with your Portal hostname. For example, under Authorization Parameters URL, the URL is currently:
https://[PORTAL_HOST]/sharing/rest/oauth2/authorize?response_type=codeIf my Portal hostname is https://portal.safeville.com/portal, I would change it to:
https://portal.safeville.com/portal/sharing/rest/oauth2/authorize?response_type=codeThe URLs to be replaced are:
- Authorization Parameters
- Retrieve Token Parameters
- Refresh Token Parameters
Click Apply to save your settings. Click Close.
3. Create a Web Connection
After closing the Manage Web Services page, you should be back at the Web Connection page. You can also reopen it from Tools/Utilities > FME Options > Web Connection.
Click on the + sign to add a new connection.
Select the Web Service created in Step 2 and give your web connection a name. Click OK.
You will be redirected to your browser to enter your ArcGIS Enterprise Portal Credentials and authorize the web connection. Enter your credentials and click Sign In.
After successfully signing in, return to FME and confirm the authorization was successful. Click OK.
Your ArcGIS Enterprise Portal Web Connection is ready to use!
If you received an error and you aren't sure how to resolve it, please see ArcGIS Online Web Connection Troubleshooting, as the troubleshooting is similar for ArcGIS Enterprise Portal.
4. Test the Connection
Add an Esri ArcGIS Feature Service Reader to the canvas and set the following fields:
- Format: Esri ArcGIS Feature Service
-
Parameters:
- Source Type: Enterprise
-
Site URL:
https://<YourPortalURL>/portal - Authentication Type: Web Connection
- Web Connection: <your portal connection>
- Item Source: User or Group
- Folder or Group: User Folder or Group selection available to you based on the Item Source
-
Feature Service: <any feature service available to you>
- Click the ellipsis to select from your available feature service
If you are using the legacy Esri ArcGIS Portal Feature Service instead of Esri ArcGIS Feature Service, refer to the prior steps to create a new web service and connection, substituting the Esri ArcGIS Portal (Template) web service for the Esri ArcGIS Enterprise OAuth (Template) (safe.esri-agol) web service. Follow the configuration below to test.
Add an Esri ArcGIS Portal Feature Service Reader to the canvas and set the following fields:
- Format: Esri ArcGIS Portal Feature Service
-
Dataset:
https://<YourPortalURL>/portal -
Parameters:
- Authentication Type: Web Service
- ArcGIS Portal Connection: <your portal connection>
-
Feature Service: <any feature service available to you>
- Click the ellipsis to select from your available feature service
Click OK twice to create the reader.
Click Run to test that the reader works! Keep the workspace open; we will use it in Part 2.
Part 2: FME Flow
We will go through a few extra steps to get this working in FME Flow.
If you created the connection in Part 1 and have FME Flow Connection Storage enabled in FME Form, then the connection will already be available on FME Flow, and you can skip this part.
1. Add a Redirect URL to the Portal Application
From the Content page in your ArcGIS Enterprise Portal, find the application created in Part 1. On the Settings page, scroll down to the Application panel.
Scroll down to Redirect URLs and click Add. Add the Redirect URL for your FME Flow server in the format <my_fme_flow_url>/fmeoauth. For example:
Scroll to the bottom of the page and click Save to apply the changes.
2. Upload the Web Service to FME Flow
Back in FME Workbench, navigate to Tools/Utilities > FME Options… > Web Connections > Manage Services… and then select the Web Service you created in Part 1.
Scroll to the bottom of the parameters and click Upload.

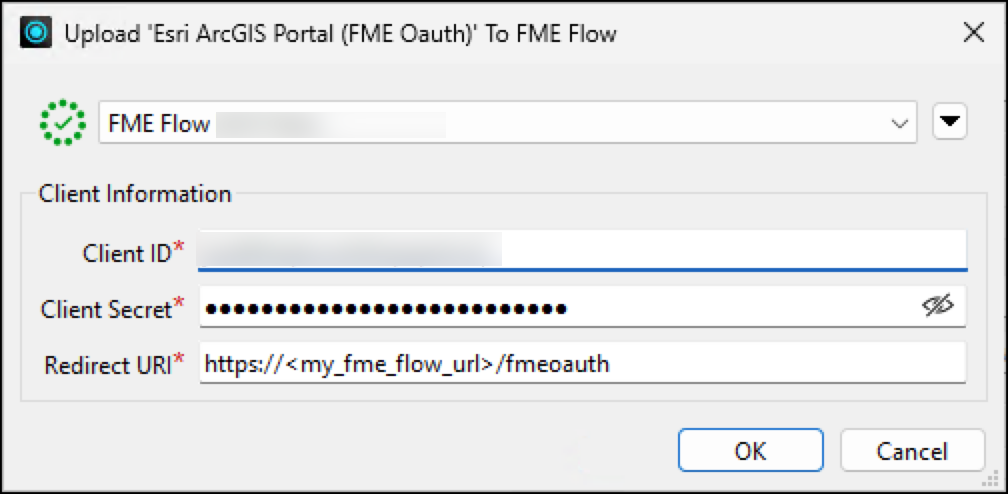

Enter the Client ID and Client Secret from the ArcGIS Enterprise Portal Application. Next, add your FME Flow URL in the Redirect URI field in the format https://<my_fme_flow_url>/fmeoauth
Click OK. This will upload the web service to FME Flow.
3. Publish the Workspace to FME Flow
Click File, and select Publish to FME Flow. Select your FME Flow web connection and click Next.
Create a new repository called Portal. Under Workspace Name, enter PortalTest.fmw and click Next.
In the next window, upload the connection to FME Flow by selecting it and clicking Next.
Click Publish.
4. Authorize the Web Connection
In FME Flow, go to Connections & Parameters, Web Connections, and then click your web connection name.
Click Authorize and enter your ArcGIS Enterprise Portal credentials when prompted. After successfully authorizing the connection, there should be a green check mark.
You may need to return to this page and reauthorize the connection periodically, especially if no jobs using it have been run within two weeks, which is the default refresh token expiry for Enterprise Portal. However, your organization may change this value, requiring more or less frequent authorization. As long as a job has run before the refresh token expires, FME will be able to obtain a new one and reauthorization shouldn't be necessary.
5. Run the Workspace on FME Flow
Go to your FME Flow and select Run Workspace. Find the workspace that was just uploaded. Then, select Run to run the workspace. The workspace should run successfully.
