Introduction

How your AutoCAD drawing file is interpreted by FME is largely dependent on which reader parameters are selected.

The common ways that we choose to read an AutoCAD drawing file are based on:

In this article, we'll examine how we can explode blocks. Specifically, we'll take a look at the Explode Blocks into Entities reader parameter.



Step-by-step Instructions

Exploding Block Entities

Exploding blocks means that the block will be exploded into its component entities such as text, lines, points, and so on. This is useful for when you want to represent your block in FME as it would be seen in AutoCAD, for example, if you wanted to translate a DWG to PDF.


1. Start Data Inspector and Open Dataset

Open the FME Data Inspector and select the Open Data Set icon, or use the File > Open Dataset menu option

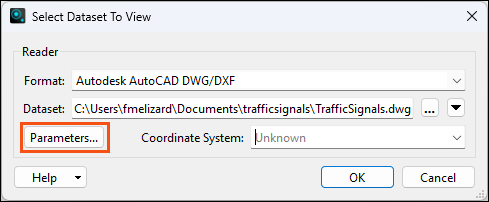

In the Open Dataset dialog, select AutoCAD DWG/DXF for the format and select the trafficsignals.dwg file as the dataset.


2. Set Reader Parameters

Click on the Parameters button.

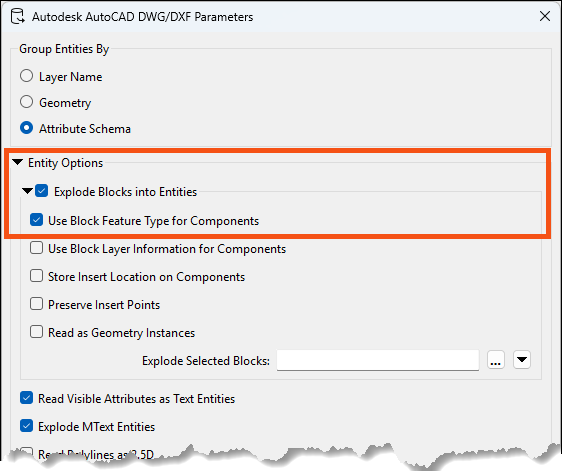

For Entity Options, check the Explode Blocks into Entities option.

In the reader parameters for adding a DWG reader, you will see that there is a whole section devoted to 'Entity Options'. This section controls how certain entities are going to be handled as they are read by FME. The very first option available is 'Explode Blocks into Entities':



After checking this parameter, if you click on the arrow next to this field you will see additional related options when the menu expands:



These additional menu options allow you to select where you want these component entities to be stored.

Click OK to dismiss the Reader Parameters, then OK again.


3. Examine block

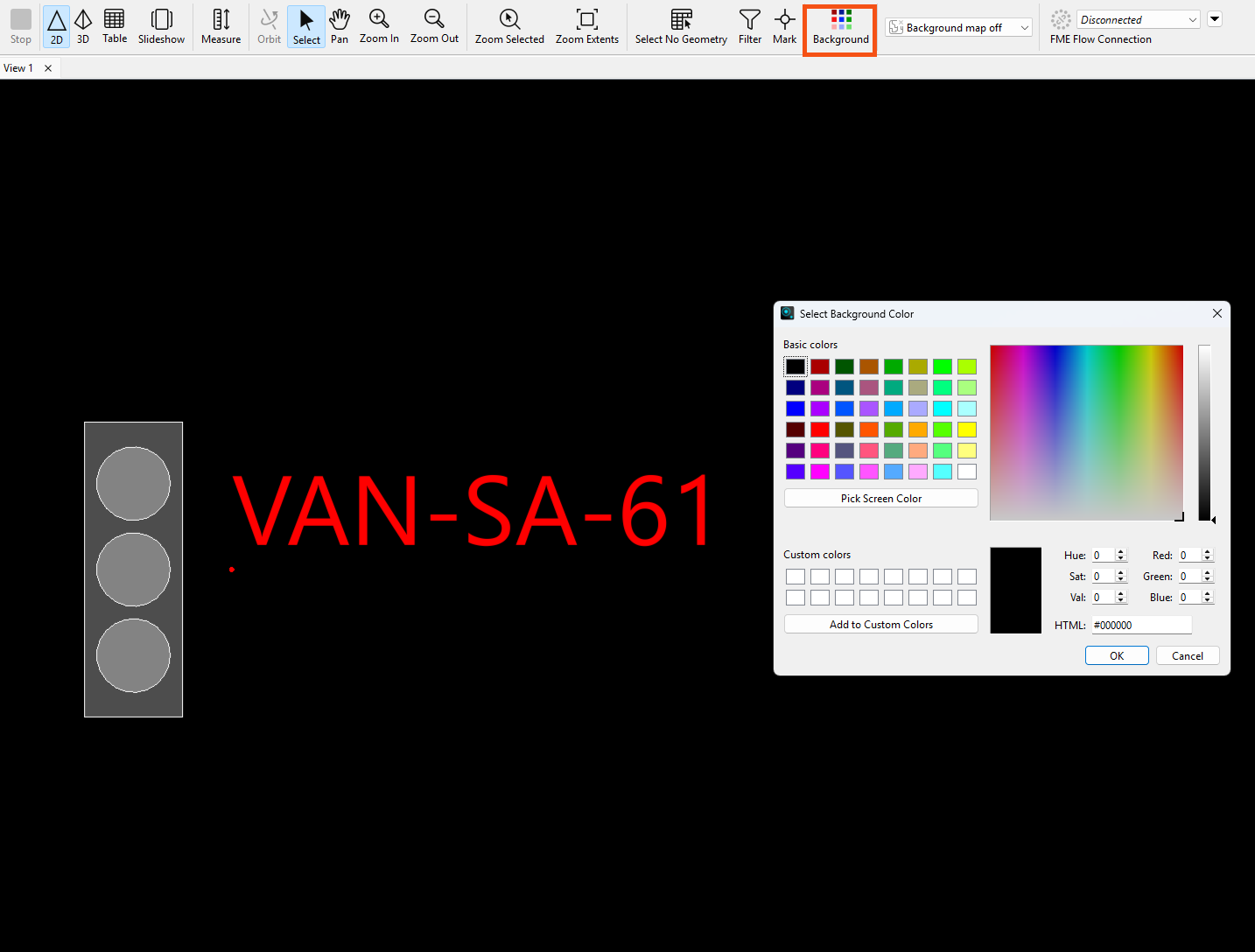

Zoom into a single traffic light. The exploded blocks are in white. You may need to change the background color to black to see them more clearly (from the View > Background Color menu).


Exploded Block: Note that the block appears as it was originally drawn in AutoCAD, but the individual parts can be selected. That is because the block is no longer a single entity.


Preserving (Not Exploding) Block Entities

By not exploding block entities we are preserving the insert location of the block (where it was placed in the model). If you are not concerned with maintaining the appearance of the block as it looked in AutoCAD, but rather want to retain a discrete entity with associated attributes (such as converting the AutoCAD blocks to points in an Esri Shapefile), then this is a great option.

You can do this by repeating the steps from the section above, but ensuring that ‘Explode Blocks into Entities’ is not checked.

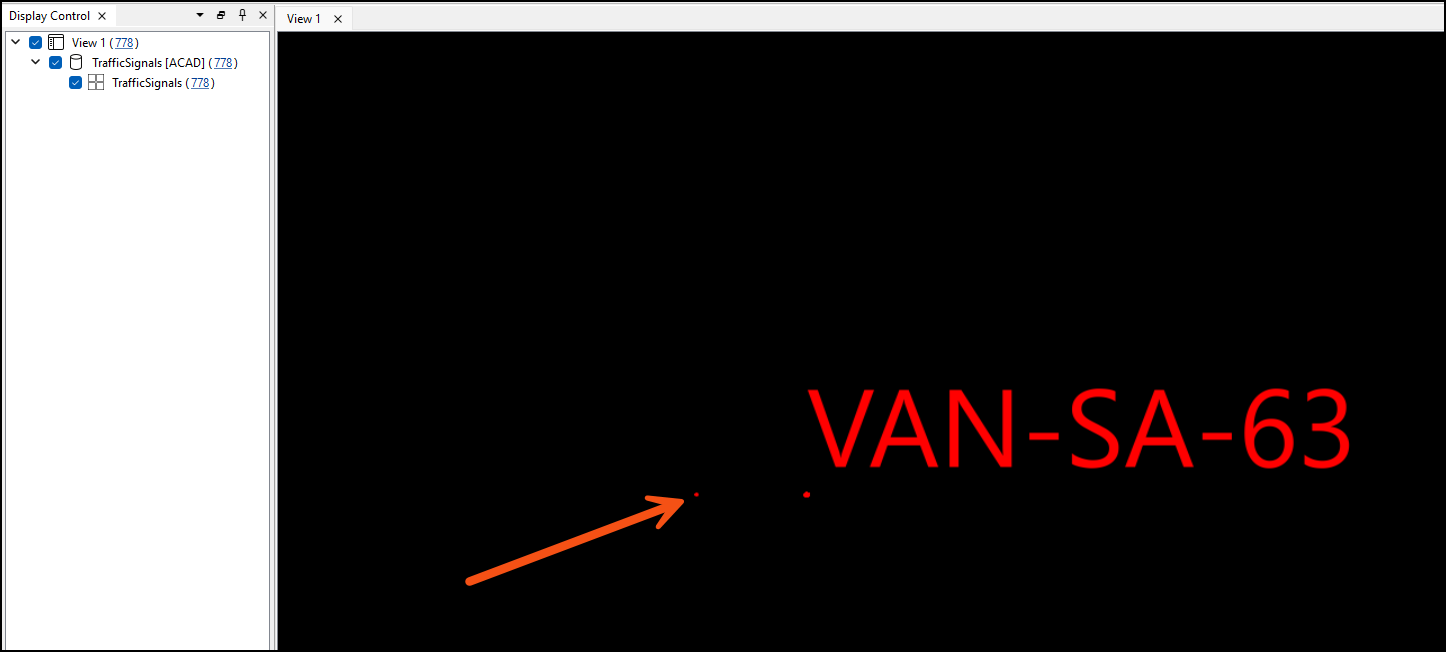

Unexploded block: By NOT checking the reader parameter option Explode Blocks into Entities, the block is represented as a single point in FME.



Data Attribution

The data used in this tutorial originates from open data made available by the City of Vancouver , British Columbia. It contains information licensed under the Open Government License - Vancouver.
