Introduction

FME supports many raster formats as readers and writers. The full list of supported raster formats can be found in the FME Integrations Gallery in the “Raster & Aerial Imagery” category.

There are different types of rasters, and when translating between raster formats, you might see error messages in the FME translation log if the source and destination bands and palettes are not compatible. This article discusses how to translate between different types of rasters.


Step-by-Step Instructions

Let's look at a few example workspaces that translate between raster formats. In Part 1, we’ll translate between two raster formats with compatible interpretations. In Part 2, we'll look at a scenario where we get an error message and need to convert the band interpretation. In Part 3, we'll look at another error message where we need to resolve the palette in order to meet the destination format’s requirements. For further information on handling bands and palettes, refer to the FME Raster Documentation.


Part 1: Direct translations between compatible raster formats

The simplest raster translation is when the reader and writer formats are compatible. That is, the destination format supports the same or a richer interpretation as the source format.

1. Generate a workspace

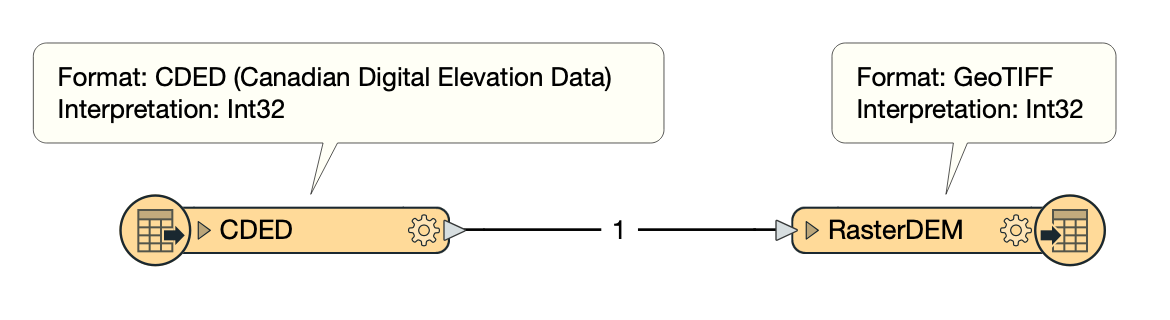

In FME Workbench, click File > Generate Workspace. Choose your source format and dataset, and destination format and dataset. In this example, the user is reading a DEM file in the CDED format and translating to GeoTIFF.



2. Inspect the source data

To find out the interpretation of the source raster, open the FME Data Inspector and open the source dataset. Click anywhere on the raster to drop a pin, then look at the band information in the Feature Information pane.

When viewing the CDED raster in the Data Inspector, we can see that the interpretation is defined in “Band 0 (INT32)”.



3. Run the translation

When the user runs the translation in Workbench, the raster is translated from source to destination without any errors. Converting from CDED to GeoTIFF is successful because the band interpretation is compatible — GeoTIFF supports a wide variety of interpretations, and Int32 (32-bit integer values) is among them.


Part 2: Converting band interpretations

Some raster translations need to have the band interpretation coerced into the destination type. After completing the steps in Part 1 and running the translation, you might get an error message related to the band interpretation.

1. Inspect the error message

In this example, the user is trying to translate an Esri ASCII Grid file to MapInfo Vertical Mapper Grid (NGrid), and an error appears in the translation log.



The error says there is an unsupported band interpretation and that we need to convert it to a valid type.

ERROR |NGRID writer: Unsupported band interpretation 'REAL64'. Please convert the interpretation to one of the following valid types: REAL32

Esri ASCII Grid has the band interpretation Real64, while MapInfo Vertical Mapper Grid (NGrid) is Real32. This is a scenario where the source format has an interpretation that accepts a wider range of data than the destination format, so the FME translation fails and logs an error message.

2. Add an *InterpretationCoercer transformer

To resolve this, add a RasterInterpretationCoercer or RasterBandInterpretationCoercer and open the parameters. In this example, the user sets the Destination Interpretation Type to Real32 to make the data compatible with the NGrid format. The following translation is successful:




Part 3: Resolving palettes

Some raster translations need to have the palette(s) removed or resolved to match the destination format. After completing the steps in Part 1 and running the translation, you might get an error message related to the palettes.

1. Inspect the error message

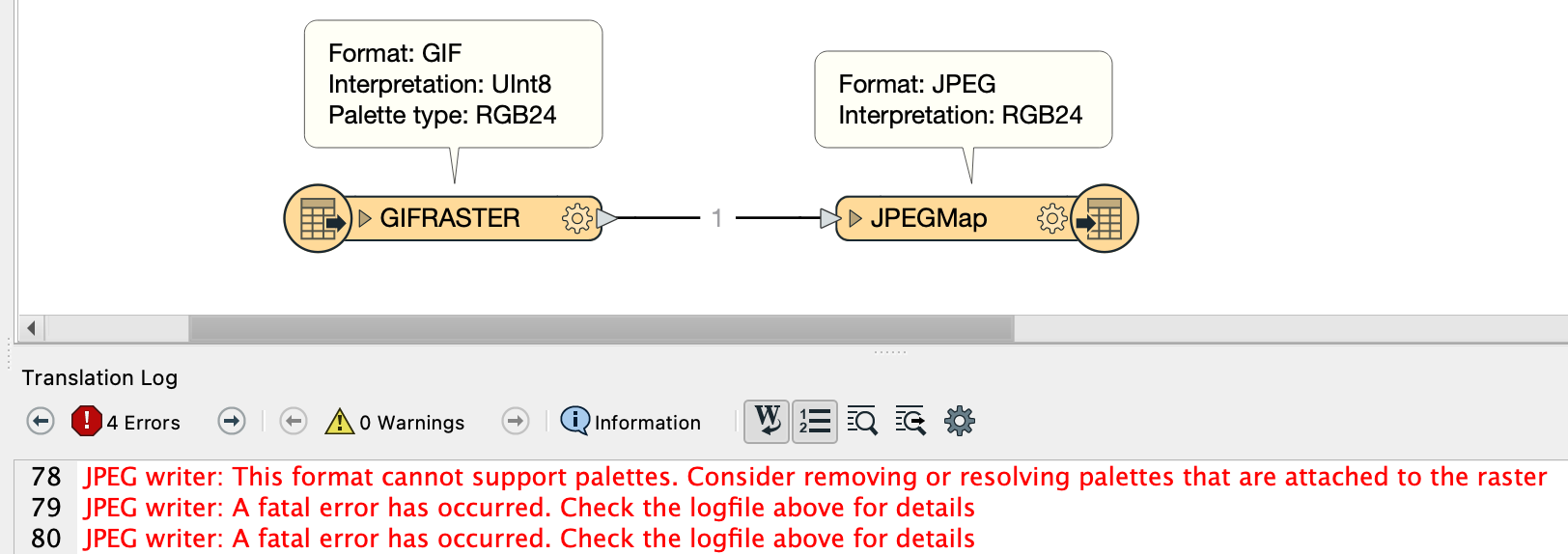

In this example, the user is trying to translate GIF to JPEG and an error appears in the translation log.



The error says that the destination type doesn’t support palettes.

ERROR |JPEG writer: This format cannot support palettes. Consider removing or resolving palettes that are attached to the raster

GIF is a palette-based format, while JPEG is pure RGB24 or Gray8 and does not support palettes.

2. Add a RasterPalette* transformer

We have two solutions: add a RasterPaletteRemover or a RasterPaletteResolver. We could use a RasterPaletteRemover to delete the palette, but the resulting UInt8 interpretation is unsupported in JPEG. We could then add a RasterBandInterpretationCoercer to coerce UInt8 to Gray8—but that would give us a gray resulting raster.

The better solution here is to resolve the palette using a RasterPaletteResolver.



This sets the raster’s cell values to values taken from a palette. So a cell/pixel in the source data might have the RGB24 value “191, 127, 76”, and the same cell in the destination would have three bands:

Band 0 (RED8): 191
Band 1 (GREEN8): 127
Band 2 (BLUE8): 76

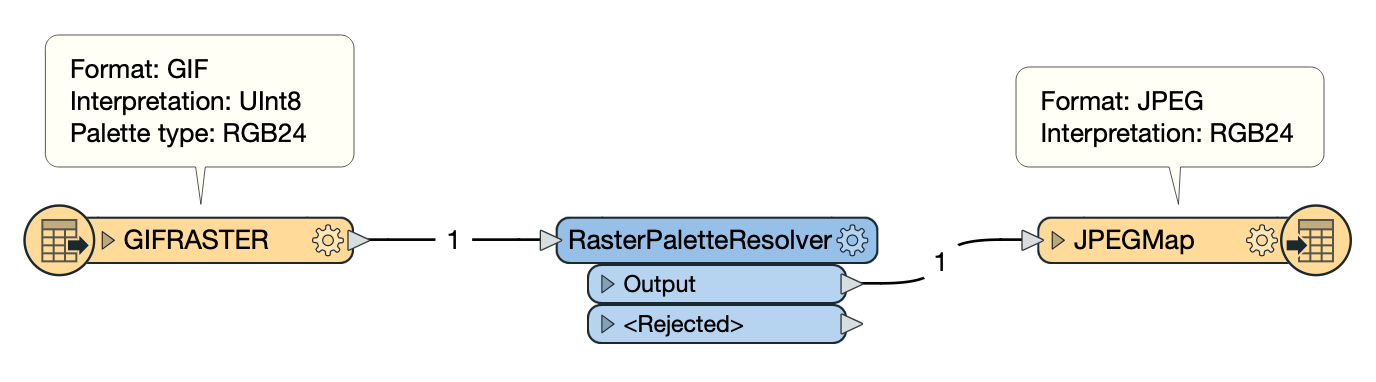

Using the RasterPaletteResolver to convert the source RGB24 palette to the RGB bands in the destination JPEG raster is successful.


Conclusion

Often, users need to transform the bands or palettes in a raster translation in order to make the source and destination formats compatible. Sometimes, more than one transformer will need to be placed to make the source format’s bands and palettes compatible with the destination format. For example, you might place a RasterSelector and a RasterBandKeeper to select and keep only one band in the raster, plus a RasterPaletteResolver to resolve the palette. Refer to the additional resources below for more information on raster translations.


Additional Resources

Tutorial: Getting Started with Rasters

Documentation: About FME Rasters
