Calculating Area, Perimeter, and Lengths

Liz Sanderson
Liz Sanderson
  • Updated

FME Version

  • FME 2022.0

Introduction

Area, perimeter, and length can be calculated for features using transformers such as the AreaCalculator and LengthCalculator in FME. In this tutorial, you will learn how to calculate the area and perimeter of polygon features, calculate polygon perimeters, and calculate the length of bike paths in the Vancouver area.


Step-by-step Instructions

Exercise 1: Calculating the Area of Polygon Features

In this exercise, you will learn how to calculate the area of park polygons using the AreaCalculator. Determining the area of each park will help you understand the distribution of green space throughout the city.

Source
The source dataset is a MapInfo TAB file containing parks in the City of Vancouver.

1. Generate Workspace
In FME Workbench, generate a new workspace.

In the Generate Dialog, set the Reader Format to MapInfo TAB (MITAB) then browse to the Parks.tab dataset that is available in the Files section of this article. There are no parameters to set.
Next, set the Writer Format to MapInfo TAB (MITAB), then browse to the Output folder. Click OK to finish generating the workspace.

2. Update Writer Attributes

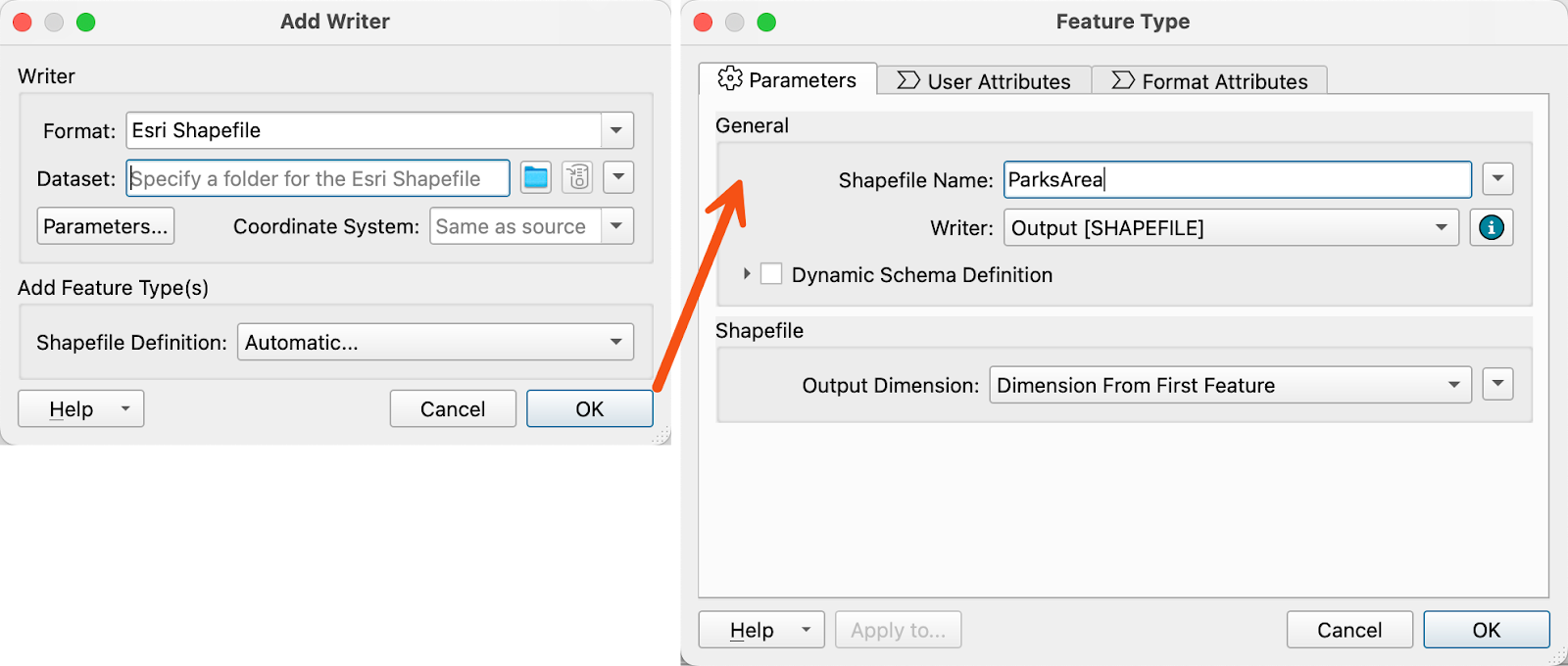

After the workspace is generated, double-click on the Parks writer feature type to open the parameters. In the parameters, change the Table Name to ParksArea.

Still in the writer feature type parameters, switch to the User Attributes tab, then set the Attribute Definition to Automatic. Click OK to close the dialog.
Switching the Attribute Definition to Automatic will automatically update the writer to include any attribute changes we make in the workspace, such as adding a new attribute (column).  For more information on User Attributes and Attribute Definitions, see the Documentation.

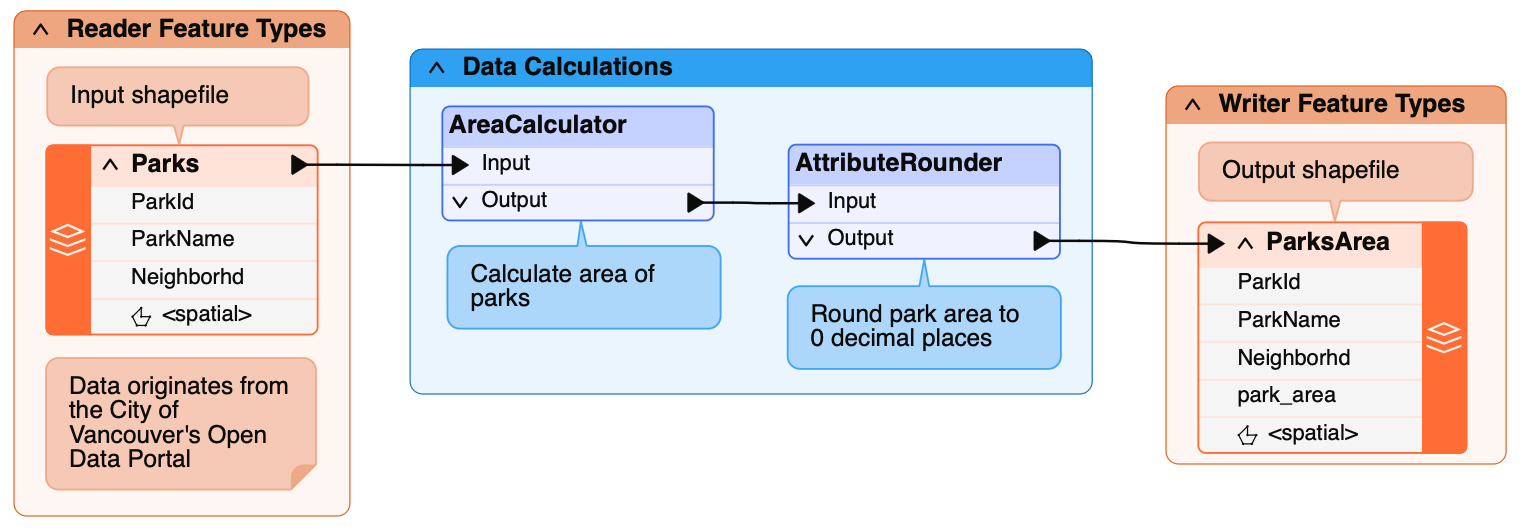

3. Calculate Area
Now we need to add an AreaCalculator to calculate the area of the park. To do this, click on the connection line between the reader and writer feature types to select it. Then add an AreaCalculator to the canvas by typing “AreaCalculator” to bring up the list of FME Transformers in the Quick Add Search. Select the AreaCalculator from the list of Transformers by double-clicking or by using the arrow keys and the Enter key to add it.

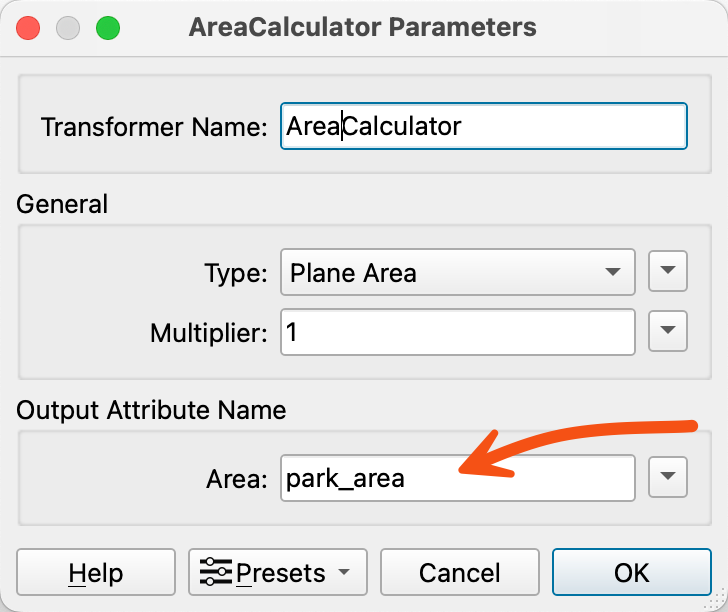

Double-click on the AreaCalculator to open the parameters. In the parameters, change the Output Attribute Name to ParkArea. This will add a new column and calculate the area of each polygon feature in the dataset. Leave all other parameters as default and click OK to accept the changes and close the AreaCalculator parameters.
Note: the area is calculated in square map units.

4. Round Area Values

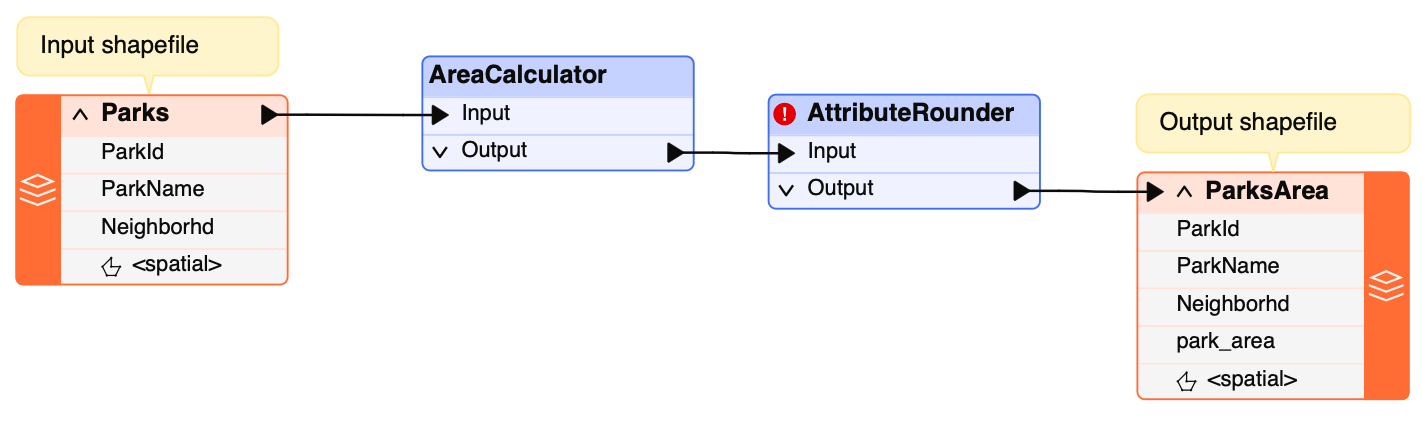

Next, add an AttributeRounder as you are only interested in finding the area of each park to the nearest map unit (which is meters in this case). Add the AttributeRounder between the AreaCalculator and the writer feature type.

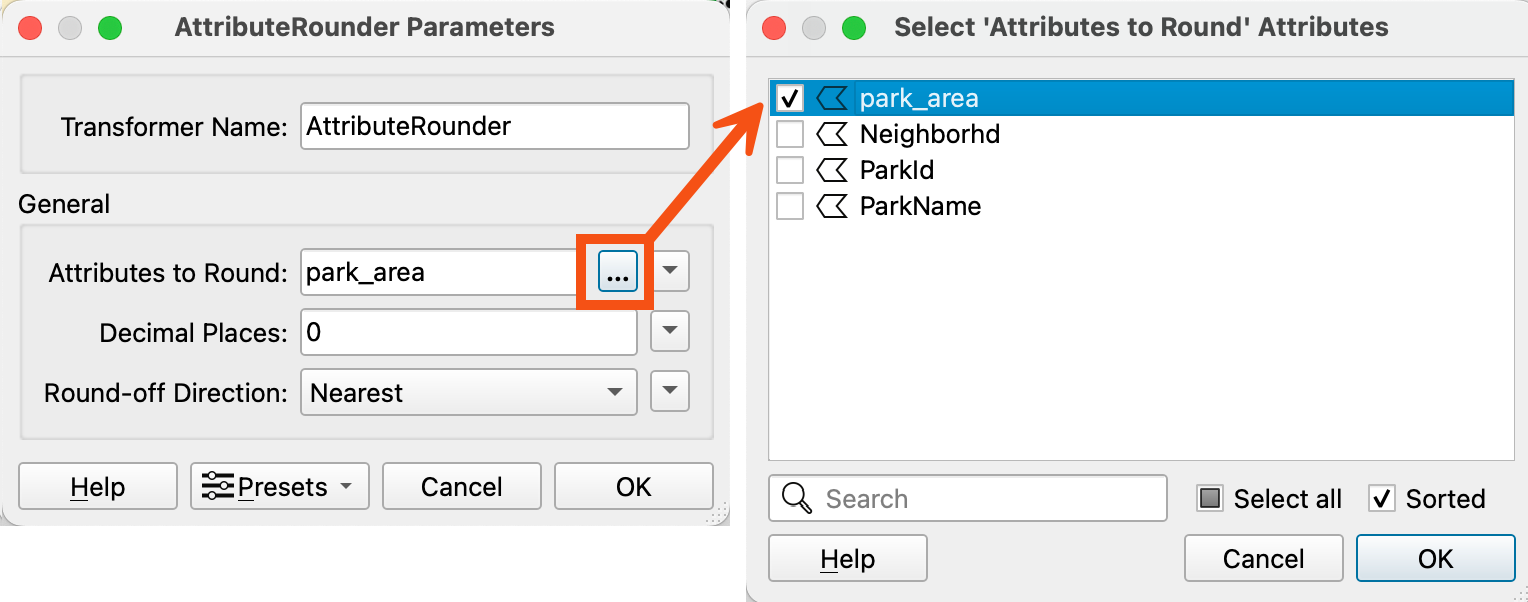

In the AttributeRounder parameters, set the Attributes to Round to the ParkArea attribute. Confirm that Decimal Places is set to 0.

5. Run the Workspace
Confirm the new ParkArea attribute (column) will be added to the dataset by clicking on the arrow on the writer feature type to expand the attributes. There should now be the ParkArea attribute.

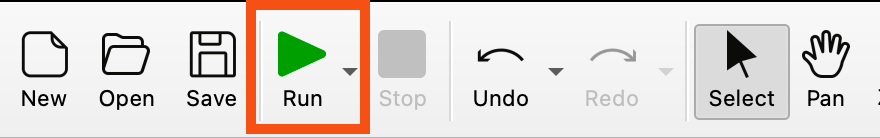

Run the workspace by clicking on the Run button on the top toolbar, or by using Run > Run Workspace on the top menu bar.

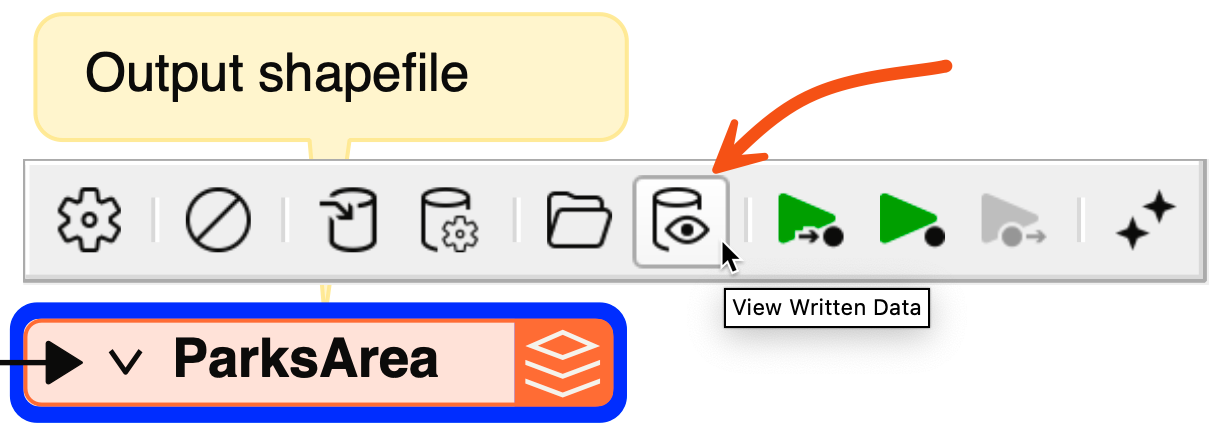

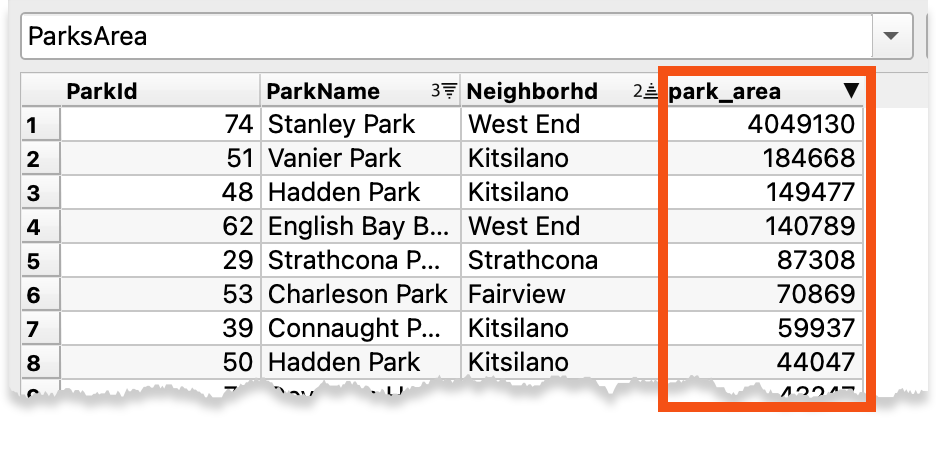

After running the workspace, the dataset will have a ParkArea column with the calculated area. You can view the dataset by selecting the writer feature type to open the popup menu and clicking on the View Writen Data button.

The data will open in Visual Preview, where you will see the newly added ParkArea attribute for each park polygon.


Exercise 2: Calculating the Perimeter of Polygon Features

In this exercise, you will learn how to calculate the perimeter of park polygons using the LengthCalculator.

Source
The source dataset is a MapInfo TAB file containing parks in the City of Vancouver.

1. Generate Workspace
In FME Workbench, generate a new workspace.

In the Generate Dialog, set the Reader Format to MapInfo TAB (MITAB) then browse to the Parks.tab dataset that is available in the Files section of this article. There are no parameters to set.
Next, set the Writer Format to MapInfo TAB (MITAB), then browse to the Output folder. Click OK to finish generating the workspace.

2. Update Writer Attributes

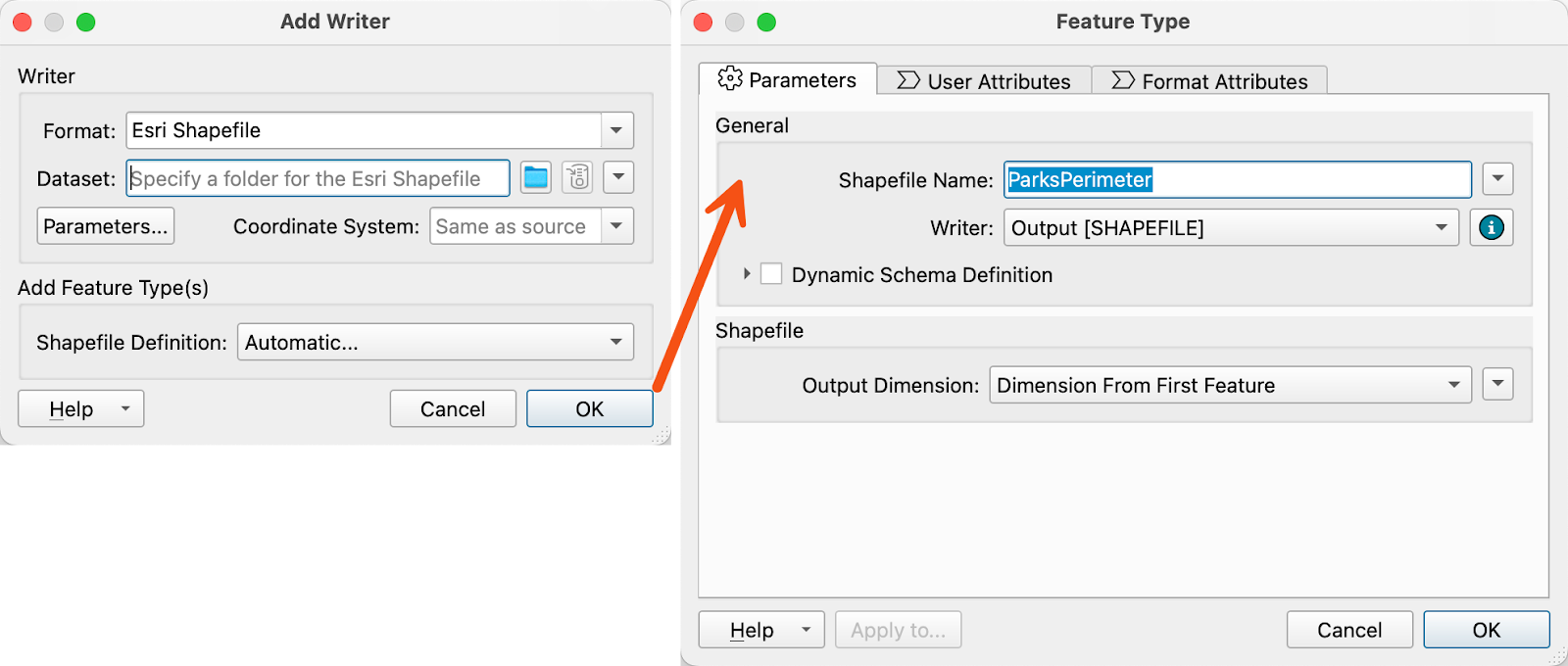

After the workspace is generated, double-click on the Parks writer feature type to open the parameters. In the parameters, change the Table Name to ParksPerimeter.

Still in the writer feature type parameters, switch to the User Attributes tab, then set the Attribute Definition to Automatic. Click OK to close the dialog.
Switching the Attribute Definition to Automatic will automatically update the writer to include any attribute changes we make in the workspace, such as adding a new attribute (column).

3. Calculate Perimeter

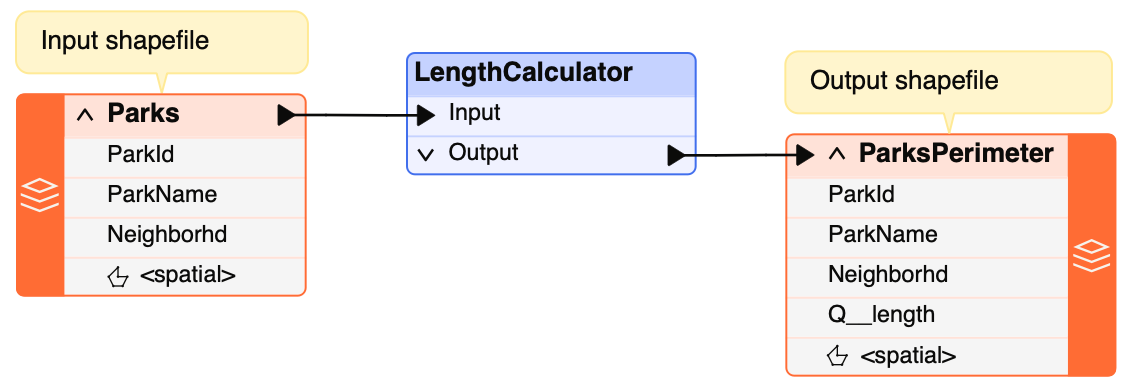

Now we need to add a LengthCalculator to calculate the perimeter of the park. To do this, click on the connection line between the reader and writer feature types to select it. Then add a LengthCalculator to the canvas by typing “LengthCalculator” to bring up the list of FME Transformers in the Quick Add Search. Select the LengthCalculator from the list of Transformers by double-clicking or by using the arrow keys and the Enter key to add it.

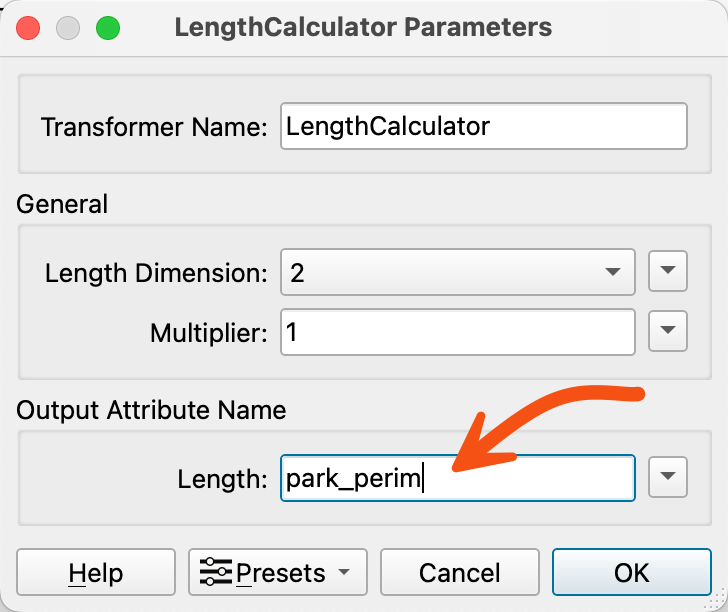

Double-click on the LengthCalculator to open the parameters. In the parameters, change the Output Attribute Name to ParkPerimeter. This will add a new column and calculate the perimeter of each polygon feature in the dataset. Leave all other parameters as default and click OK to accept the changes and close the LengthCalculator parameters.
Note: the perimeter is calculated in map units.

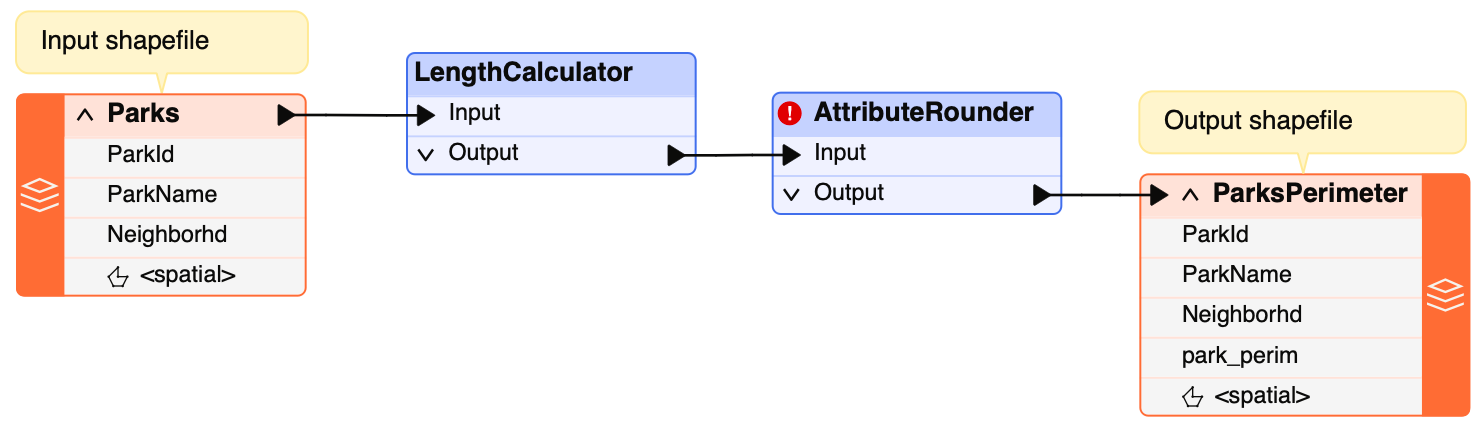

4. Round Area Values
Next, add an AttributeRounder as you are only interested in finding the perimeter of each park to the nearest map unit (which is meters in this case). Add the AttributeRounder between the LengthCalculator and the writer feature type.

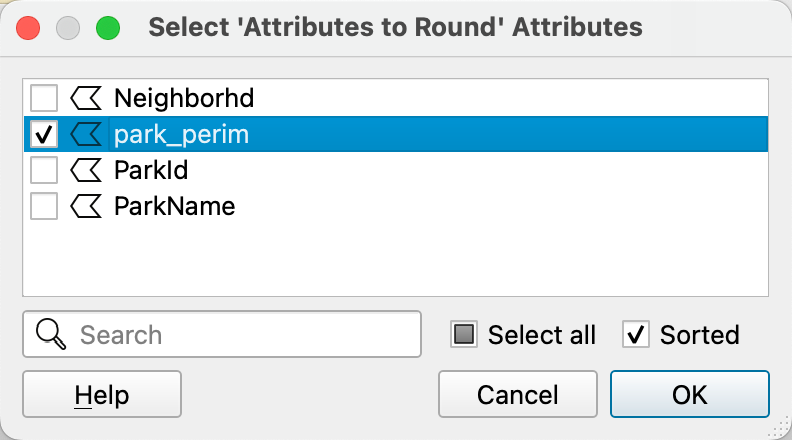

In the AttributeRounder parameters, set the Attributes to Round to the ParkPerimeter attribute. Confirm that Decimal Places is set to 0.

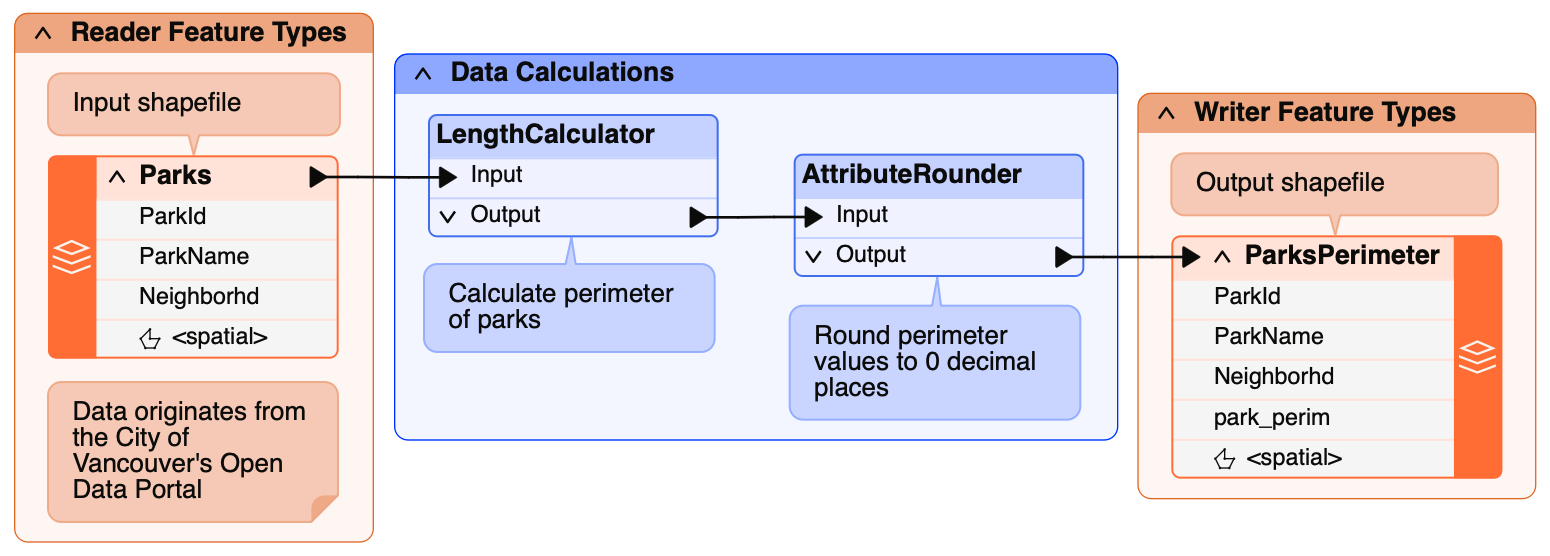

5. Run the Workspace
Confirm the new ParkPerimeter attribute (column) will be added to the dataset by clicking on the arrow on the writer feature type to expand the attributes. There should now be the ParkPerimeter attribute.

Run the workspace by clicking on the Run button on the top toolbar, or by using Run > Run Workspace on the top menu bar.

After running the workspace, the dataset will have a ParkPerimeter column with the calculated perimeter. You can view the dataset by selecting the writer feature type to open the popup menu and clicking on the View Written Data button.

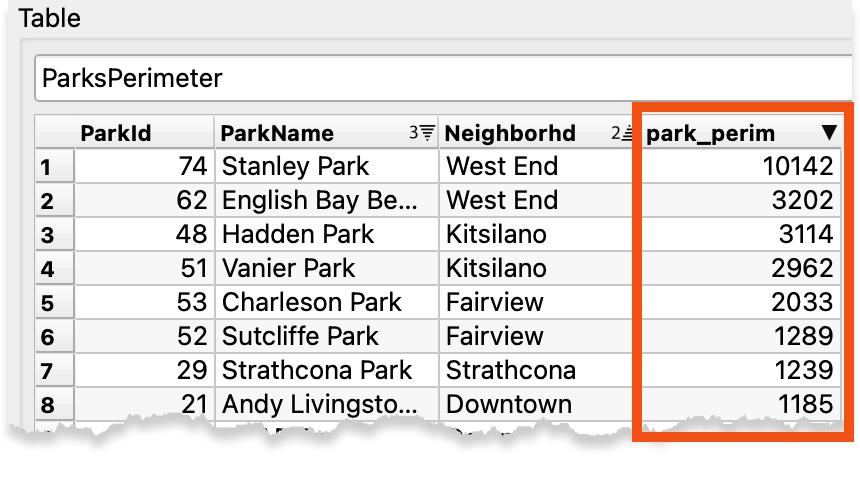

The data will open in Visual Preview, where you will see the newly added ParkPerimeter attribute for each park polygon.


Exercise 3: Calculating Length of a Line

In this exercise, you will learn how to calculate the Length of bike paths using the LengthCalculator. To learn more about calculating length, see the Distance Measurements with the LengthCalculator article.

Source
The source dataset is an Esri Shapefile containing bike paths in the City of Vancouver.BikeSource.png

1. Generate Workspace
In FME Workbench, generate a new workspace.

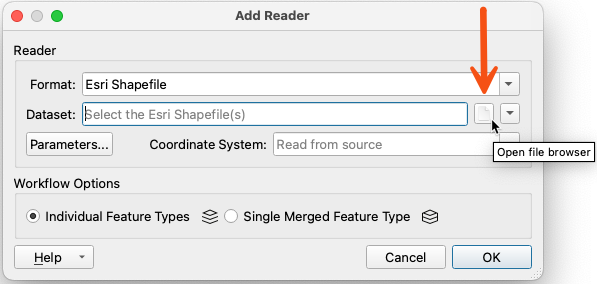

In the Generate Dialog, set the Reader Format to Esri Shapefile then browse to the BikePaths.shp dataset that is available in the Files section of this article. There are no parameters to set.
Next, set the Writer Format to Esri Shapefile, then browse to the Output folder. Click OK to finish generating the workspace.

2. Update Writer Attributes
After the workspace is generated, double-click on the BikePaths writer feature type to open the parameters. In the parameters, change the Table Name to BikePathLength.

Still in the writer feature type parameters, switch to the User Attributes tab, then set the Attribute Definition to Automatic. Click OK to close the dialog.
Switching the Attribute Definition to Automatic will automatically update the writer to include any attribute changes we make in the workspace, such as adding a new attribute (column).

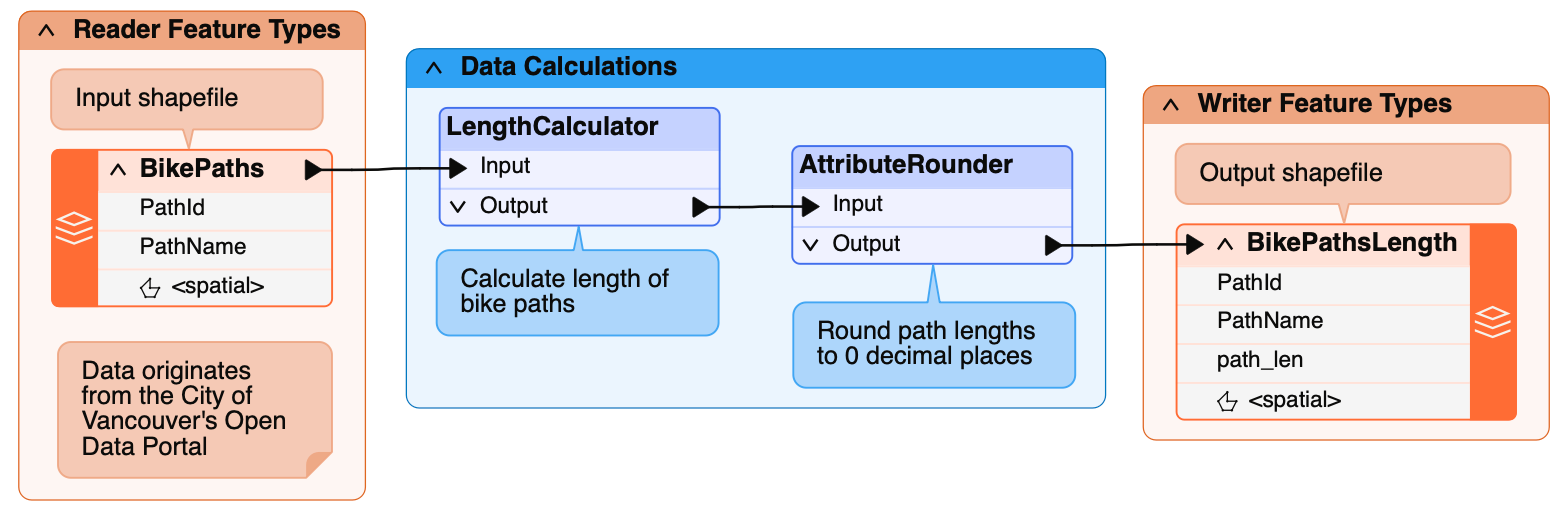

3. Calculate Length

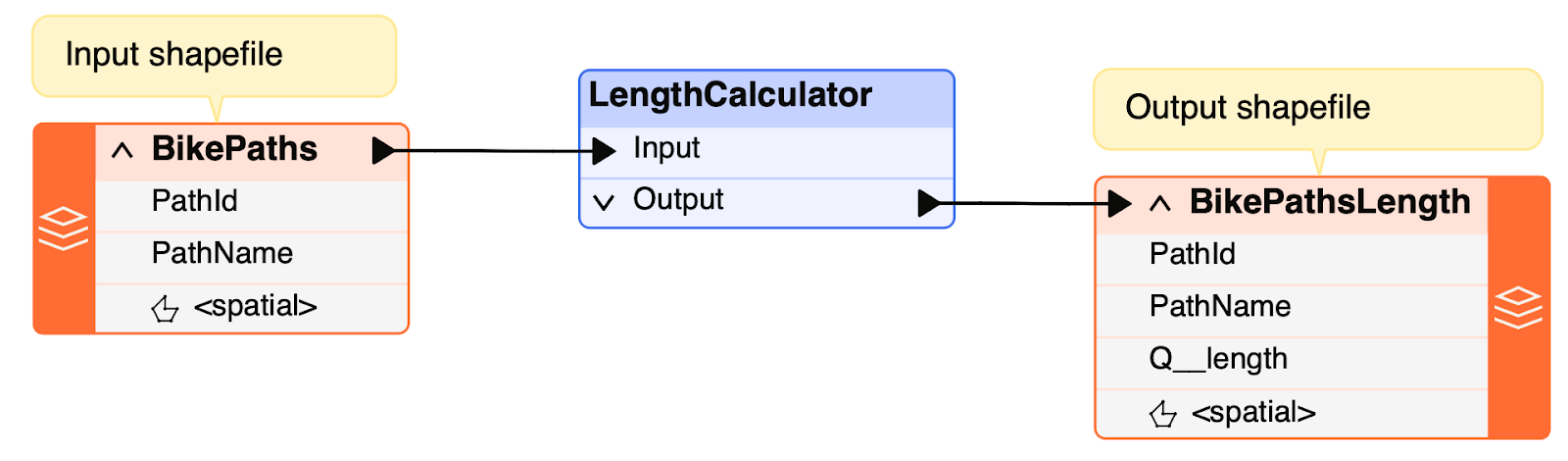

Now we need to add a LengthCalculator to calculate the length of the bike path. To do this, click on the connection line between the reader and writer feature types to select it. Then add a LengthCalculator to the canvas by typing “LengthCalculator” to bring up the list of FME Transformers in the Quick Add Search. Select the LengthCalculator from the list of Transformers by double-clicking or by using the arrow keys and the Enter key to add it.

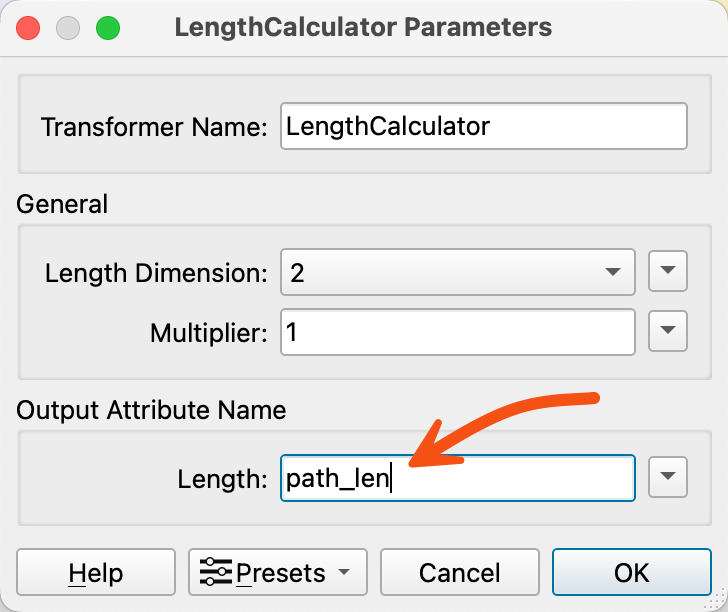

Double-click on the LengthCalculator to open the parameters. In the parameters, change the Output Attribute Name to PathLength. This will add a new column and calculate the length of each bike path line feature in the dataset. Leave all other parameters as default and click OK to accept the changes and close the LengthCalculator parameters.
Note: length is calculated in map units.

4. Round Area Values

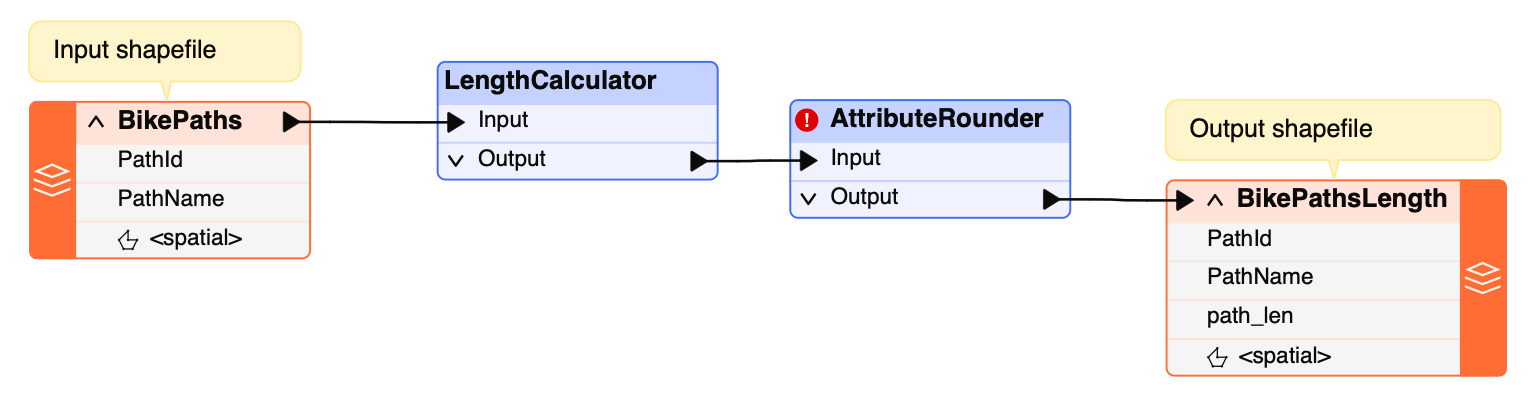

Next, add an AttributeRounder as you are only interested in finding the length of each bike path to the nearest map unit (which is meters in this case). Add the AttributeRounder between the LengthCalculator and the writer feature type.

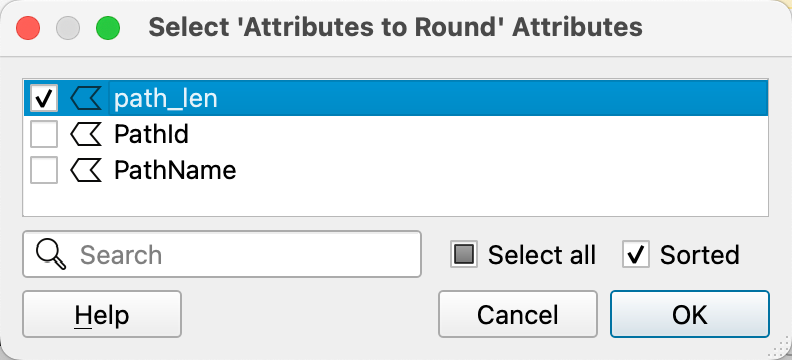

In the AttributeRounder parameters, set the Attributes to Round to the PathLength attribute. Confirm that Decimal Places is set to 0.

5. Run the Workspace
Confirm the new PathLength attribute (column) will be added to the dataset by clicking on the arrow on the writer feature type to expand the attributes. There should now be the PathLength attribute.

Run the workspace by clicking on the Run button on the top toolbar, or by using Run > Run Workspace on the top menu bar.

After running the workspace, the dataset will have a PathLength column with the calculated length. You can view the dataset by selecting the writer feature type to open the popup menu and clicking on the View Written Data button.

The data will open in Visual Preview, where you will see the newly added PathLength attribute for each bike path.



Data Attribution

Data used in this tutorial originates from open data made available by the City of Vancouver, British Columbia. It contains information licensed under the Open Government License - Vancouver.
